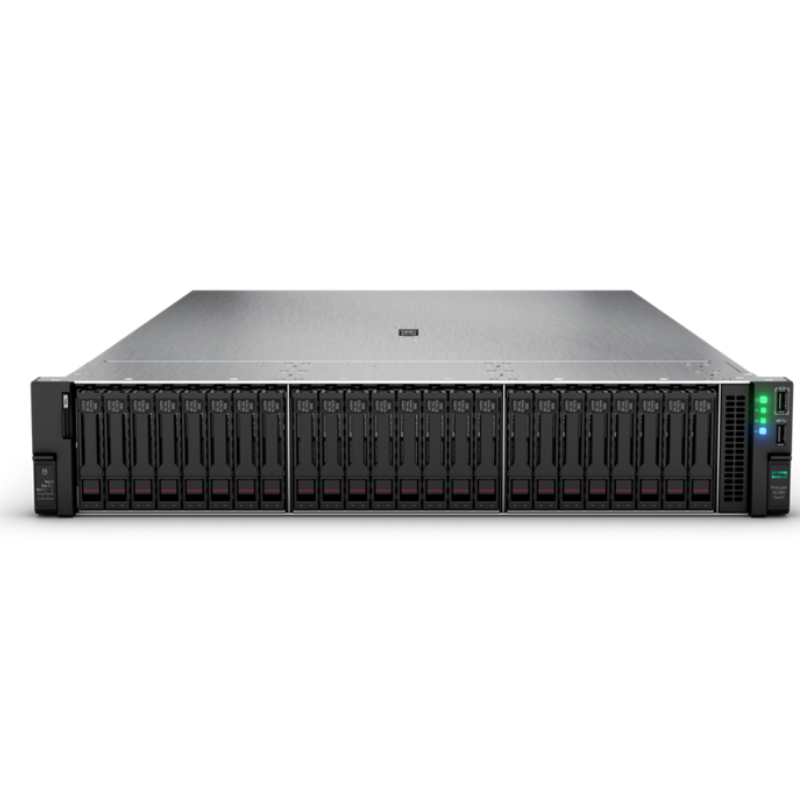

HPE ProLiant DL380 Gen11 Rack Server – Intel Xeon Silver 4416+, 32GB RDIMM, MR408i‑o 8GB RAID, 2U (P60636‑421)
The HPE ProLiant DL380 Gen11 (P60636‑421) is a powerful 2U mid-range rack server designed for virtualization, databases, line‑of‑business applications, and mixed enterprise workloads. This configuration features one Intel Xeon Silver 4416+ processor with 20 cores at 2.0 GHz (165W) and a high‑performance heat sink, providing excellent multi‑threaded performance for consolidation and virtualized environments.
It comes with 32 GB RDIMM (1 x 32 GB) 2R 4800 MT/s, no HDD pre-installed (ready for custom drive selection), a HPE 1000W Flex Slot Titanium hot‑plug power supply, and serious connectivity via HPE PCI Base Adapter 4x1Gb plus Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 OCP3 adapter. Storage is handled by an HPE MR408i‑o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller with Smart Storage Battery, supporting advanced RAID and high I/O performance.
With iLO (standard) for out‑of‑band management, no bundled optical drive/mouse/keyboard (data‑centre ready), and a 3/3/3 warranty (3 years parts, 3 years labour, 3 years onsite), this HPE ProLiant DL380 Gen11 2U rack server is an ideal choice for modern server rooms and data centres.
Detailed Specification Table
| Feature |
Specification |
| Brand / Series |
HPE ProLiant |
| Model |
HPE ProLiant DL380 Gen11 Rack Server |
| Product ID / SKU |
P60636‑421 |
| Form Factor |
2U rack server |
| Processor (CPU) |
1 x Intel Xeon Silver 4416+ (20 cores, 2.0 GHz, 165W) with High Performance Heat Sink |
| CPU Class |
Intel Xeon Silver – multi‑core, enterprise‑grade |
| Total Cores / Threads |
20 cores (with Hyper‑Threading for 40 threads, per Intel spec) |
| Installed Memory (RAM) |
32 GB RDIMM, 2R, 4800 MT/s (1 x 32 GB) |
| Memory Type |
ECC RDIMM DDR5 4800 MT/s (server‑grade) |
| Maximum Memory Support |
Large capacity supported with additional RDIMMs (per DL380 Gen11 platform limits) |
| Storage |
No HDD included (user‑selectable SFF drives) |
| Storage Controller |
HPE MR408i‑o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller |
| Controller Cache |
8 GB cache + Smart Storage Battery |
| Drive Bays |
SFF drive bay chassis (up to 8 or more SFF drives depending on backplane – this SKU prepared, no drives) |
| Drive Form Factor |
Small Form Factor (SFF, 2.5″) |
| RAID Support |
Hardware RAID (e.g., 0/1/5/10 – per MR408i‑o spec) |
| Cooling |
Standard 2U layout with multiple fans (this config lists “four standard fans” class as baseline Gen11 design) |
| Power Supply |
1 x HPE 1000W Flex Slot Titanium Hot Plug Power Supply |
| PSU Efficiency |
Titanium‑grade (very high efficiency) |
| Network Adapters |
– HPE PCI Base Adapter 4 x 1Gb Ethernet<br> – Broadcom BCM57414 Ethernet 10/25Gb 2‑port SFP28 OCP3 Adapter |
| Remote Management |
HPE iLO (standard) – remote monitoring & basic management |
| Optical / Peripherals |
No Optical Drive, No Mouse, No Keyboard (data‑centre optimized) |
| Expansion |
PCIe slots available for additional NICs, HBAs, GPUs/accelerators (per DL380 Gen11 riser configuration) |
| Rack Compatibility |
Standard 19″ rack mounting (2U height) |
| Warranty & Support |
3/3/3 warranty: 3 years parts, 3 years labour, 3 years onsite |
| Typical Workloads |
Virtualization, databases, ERP/CRM, application servers, file/print, analytics |
| Market Segment |
Mid‑range to upper mid‑range rack server for enterprises and performance‑oriented SMBs |
Key Performance Highlights
- 20-Core Silver Performance: The 4416+ is one of the most powerful “Silver” processors ever made. With 20 physical cores and a large 37.5MB cache, it bridges the gap between Silver and Gold, providing massive parallel processing for modern containerized apps.
- 10/25Gb SFP28 Connectivity: This server is equipped for the future of networking. The BCM57414 adapter supports 25Gbps speeds over fiber (SFP28), allowing for near-instant backups and high-bandwidth traffic for data centers in Nairobi.
- Advanced Storage Cache: While standard configurations use a 4GB cache, this model features the 8GB Cache variant of the MR408i-o. Combined with the Smart Storage Battery, it ensures extreme write speeds and total data safety during power outages.
- High Performance Cooling: Because the 4416+ runs at 165W, this bundle includes the High Performance Heatsink. This ensures the processor never throttles under heavy workloads, maintaining maximum performance even in tropical ambient temperatures.
- Titanium Efficiency: The 1000W Titanium PSU ensures that despite the high core count and advanced networking, the server’s energy draw remains optimized, reducing long-term operational costs.
Common Suitable Users
The HPE ProLiant DL380 Gen11 (P60636‑421) with Intel Xeon Silver 4416+ is ideal for:
- Medium & Large Enterprises
Looking for a high‑core 2U rack server to consolidate multiple services, databases, and applications.
- Virtualization & Private Cloud Environments
Hosting large numbers of VMs or containers, with strong CPU resources and high‑speed storage.
- Database & Analytics Teams
Running SQL/NoSQL databases, BI/reporting workloads, and analytics that benefit from 20 cores and fast RAID.
- Managed Service Providers (MSPs)
Deploying flexible, multi‑tenant nodes with 10/25Gb connectivity and enterprise RAID performance.
- Data Centres & Co‑Location Facilities
Standardizing on a modern HPE ProLiant DL380 Gen11 platform with efficient Titanium power and rich I/O.
- High‑Demand SMBs & Regional Organisations
Moving from multiple legacy servers to a single, powerful, expandable 2U rack server.
Key Pros of HPE ProLiant DL380 Gen11 (Xeon Silver 4416+, P60636‑421)
- High Core Count Xeon Silver CPU
20 cores (40 threads) at 2.0 GHz with 165W TDP provide excellent multi‑threaded performance for virtualization and databases.
- Modern DDR5 4800 MT/s RDIMM Memory
32GB DDR5 RDIMM at 4800 MT/s offers high bandwidth with a clear path for memory expansion.
- Powerful MR408i‑o Gen11 RAID with 8GB Cache
x16 lanes and 8GB cache plus Smart Storage Battery enable high‑performance, resilient storage configurations.
- Flexible “No HDD” Configuration
Lets you choose your own SSD/HDD mix (SAS/SATA) and capacity to match workload and budget.
- High‑Efficiency 1000W Titanium PSU
Titanium Flex Slot PSU ensures excellent power efficiency and hot‑plug maintainability.
- Robust Networking: 4 x 1Gb + 2 x 10/25Gb SFP28
Combination of 4x1Gb and 2×10/25Gb delivers both compatibility and high‑speed uplinks for storage or core LAN.
- Enterprise‑Grade HPE iLO Management
Standard iLO allows remote health monitoring, firmware management, and secure out‑of‑band access.
- Proven 2U DL380 Gen11 Platform
Highly flexible, widely supported chassis used across many enterprise and data‑centre environments.
- 3/3/3 Warranty with Onsite Support
Three years of onsite parts and labour help reduce downtime and total cost of ownership.
Market Price Variation Table
The ranges below are indicative Actual pricing depends on added HDD/SSD, RAM upgrades, support level, and exchange rates.
| Seller / Channel Type |
Approx. Price Range (KES) |
Typical Notes / Offers |
| Authorized HPE Enterprise Resellers |
720,000 – 980,000 |
May include solution design, installation & optional advanced support |
| Corporate / Data Centre Hardware Retailers |
740,000 – 900,000 |
Often bundle HDD/SSD options, extra RAM, or OS licensing |
| Online Enterprise IT Marketplaces (Kenya) |
700,000 – 960,000 |
Spec‑dependent; confirm genuine P60636‑421, warranty & onsite support |
Pricing fluctuates with promotions, stock, currency, and bundled services (deployment, migration, extended warranty).
Summary & Conclusion
The HPE ProLiant DL380 Gen11 Rack Server (P60636‑421) with Intel Xeon Silver 4416+ (20 cores, 2.0 GHz, 165W), 32GB DDR5 RDIMM, MR408i‑o Gen11 x16 with 8GB cache and Smart Storage Battery, 1000W Titanium Flex Slot PSU, and strong 1Gb + 10/25Gb networking is a robust, scalable 2U mid‑range rack server for modern enterprise workloads.
Its combination of high core count, fast memory, powerful RAID, flexible “no HDD” storage choice, and efficient power delivery makes it a strong candidate for virtualization clusters, database servers, ERP/CRM platforms, and mission‑critical application hosting. Backed by a 3/3/3 HPE warranty, this configuration gives organizations a dependable, future‑ready foundation for building or expanding a high‑performance rack‑mount infrastructure.
-
